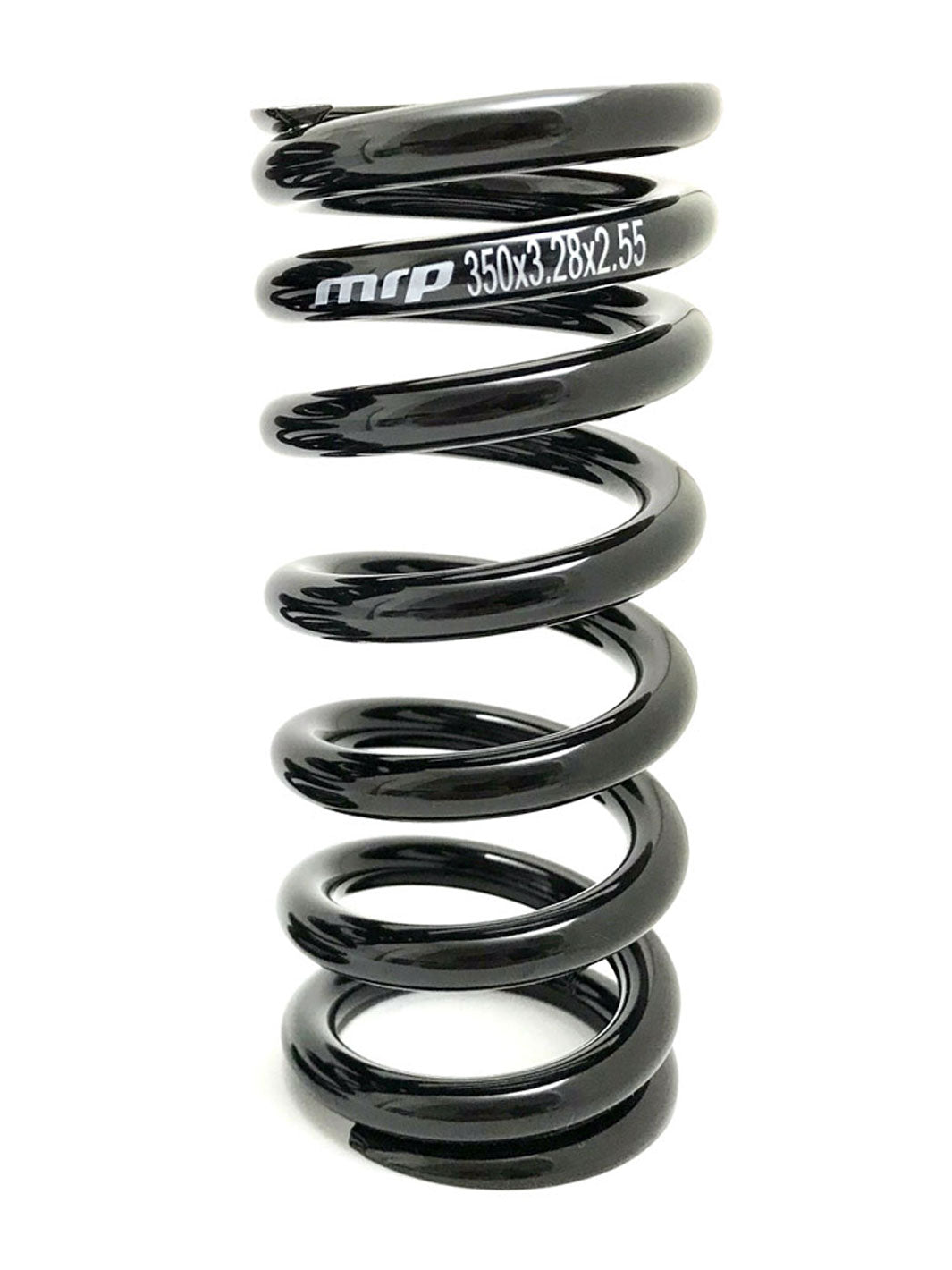

Progressive Springs increase in rate late in stroke to provide additional bottom-out support and open up the use of coil shocks on frames previously only suited to air shocks.
As with our Enduro SL springs, these springs are offered in a single free length per rate that fits most shocks from 200mm (7.875") to 230mm.* They accommodate up to 65mm of shock stroke. A 1.5" / 38mm ID fits our Hazzard natively and spacer kits are available to use with other makes and models.
*See compatibility on our Coil Spring Spacer page. Some shock length and spring rate combinations require spacers to increase the total effective spring length and engage the threading on the shock body and to account for allowable max preload. Reference the listed free lengths and measure your shock to make sure any spring will fit.
Sold out
Spring Rate and Length Information (select a tab for more info)
-
300+
-
350+
-
400+
-
450+
-
500+
-
550+
Effective base rate:
300 lb/in
Approximate linear-spring rate equivalent at 25% sag (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 275
...on 51mm (2.0")stroke shock: 275
...on 55mm / 57mm (2.25") stroke shock: 275
...on 60mm stroke shock: 300
...on 63mm (2.5") / 65mm stoke shock: 300
Approximate linear-spring rate equivalent at 90% travel (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 325
...on 55mm / 57mm (2.25") stroke shock: 325
...on 60mm stroke shock: 400
...on 63mm (2.5") / 65mm stoke shock: 400
Dimensions:
1.5" ID, 126mm
Weight:
383 g
Any and all trademarks herein are property of their respective owners. Any and all trademarks found within this website are used for compatibility information purposes only. Such use of trademarks do not constitute or imply an endorsement by the trademark holder, all compatibility and fit determinations have been made solely by MRP.
Effective base rate:
350 lb/in
Approximate linear-spring rate equivalent at 25% sag (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 350
...on 51mm (2.0")stroke shock: 350
...on 55mm / 57mm (2.25") stroke shock: 350
...on 60mm stroke shock: 350
...on 63mm (2.5") / 65mm stoke shock: 350
Approximate linear-spring rate equivalent at 90% travel (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 375
...on 55mm / 57mm (2.25") stroke shock: 400
...on 60mm stroke shock: 400
...on 63mm (2.5") / 65mm stoke shock: 400
Dimensions:
1.5" ID, 129mm
Weight:
404 g
Effective base rate:
400 lb/in
Approximate linear-spring rate equivalent at 25% sag (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 400
...on 51mm (2.0")stroke shock: 400
...on 55mm / 57mm (2.25") stroke shock: 400
...on 60mm stroke shock: 400
...on 63mm (2.5") / 65mm stoke shock: 400
Approximate linear-spring rate equivalent at 90% travel (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 450
...on 55mm / 57mm (2.25") stroke shock: 450
...on 60mm stroke shock: 450
...on 63mm (2.5") / 65mm stoke shock: 475
Dimensions:
1.5" ID, 129mm (+/- 2.5mm) length
Weight:
412 g
Effective base rate:
450 lb/in
Approximate linear-spring rate equivalent at 25% sag (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 425
...on 51mm (2.0")stroke shock: 425
...on 55mm / 57mm (2.25") stroke shock: 425
...on 60mm stroke shock: 425
...on 63mm (2.5") / 65mm stoke shock: 425
Approximate linear-spring rate equivalent at 90% travel (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 500
...on 55mm / 57mm (2.25") stroke shock: 500
...on 60mm stroke shock: 500
...on 63mm (2.5") / 65mm stoke shock: 525
Dimensions:
1.5" ID, 134mm (+/- 2.5mm) length
Weight:
477 g
Effective base rate:
500 lb/in
Approximate linear-spring rate equivalent at 25% sag (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 475
...on 51mm (2.0")stroke shock: 475
...on 55mm / 57mm (2.25") stroke shock: 475
...on 60mm stroke shock: 475
...on 63mm (2.5") / 65mm stoke shock: 475
Approximate linear-spring rate equivalent at 90% travel (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 575
...on 55mm / 57mm (2.25") stroke shock: 575
...on 60mm stroke shock: 600
...on 63mm (2.5") / 65mm stoke shock: 600
Dimensions:
1.5" ID, 137mm(+/- 2.5mm) length
Weight:
523 g
Effective base rate:
550 lb/in
Approximate linear-spring rate equivalent at 25% sag (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 525
...on 51mm (2.0")stroke shock: 525
...on 55mm / 57mm (2.25") stroke shock: 525
...on 60mm stroke shock: 525
...on 63mm (2.5") / 65mm stoke shock: 550
Approximate linear-spring rate equivalent at 90% travel (rounded to nearest 25 lb. increment):
...on 51mm (2.0")stroke shock: 650
...on 55mm / 57mm (2.25") stroke shock: 650
...on 60mm stroke shock: 675
...on 63mm (2.5") / 65mm stoke shock: 675
Dimensions:
1.5" ID, 141mm (+/- 2.5mm) length
Weight:
572 g
